EBS106

Glass Passivated Bridge Rectifier

EBS106 Datasheet (161.54 KB)

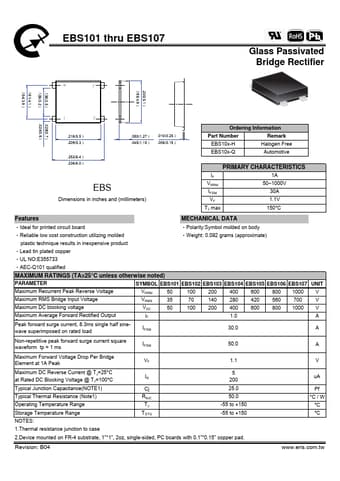

Preview of EBS106 PDF

Datasheet Details

Part number:

EBS106

Manufacturer:

Eris

File Size:

161.54 KB

Description:

Glass passivated bridge rectifier.
EBS101 thru EBS107 Glass Passivated Bridge Rectifier .200(5.1 ) .193(4.9 ) .138(3.5 ) .126(3.2 ) .161(4.1 ) .154(3.9 ) .028(0.7 ) .024(0.6 ) .216.

EBS106 Features

* MECHANICAL DATA ‧Ideal for printed circuit board ‧Polarity:Symbol molded on body ‧Reliable low cost construction utilizing molded ‧Weight: 0.092 grams (approximate) plastic technique results in inexpensive product ‧Lead tin plated copper ‧UL NO:E355733 ‧AEC-Q101 qualified MAXIMUM RATINGS (
