KBPC1508, KBPC15005 Glass Passivated Bridge Rectifiers

Eris

Description

KBPC15005 thru KBPC1510 Glass Passivated Bridge Rectifiers KBPC .

📥 Download Datasheet

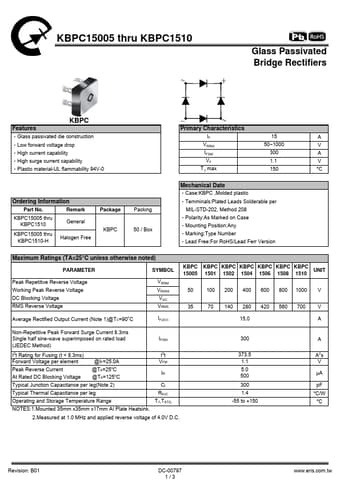

KBPC1508 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC1508, KBPC15005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBPC1508, KBPC15005
Manufacturer: Eris
File Size: 305.24 KB
Datasheet: KBPC15005-Eris.pdf
Description: Glass Passivated Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: KBPC1508, KBPC15005.
Please refer to the document for exact specifications by model.

Features

* ‧Glass passivated die construction ‧Low forward voltage drop ‧High current capability ‧High surge current capability ‧Plastic material-UL flammability 94V-0 Primary Characteristics IF VRRM IFSM VF TJ max 15 50~1000 300 1.1 150 A V A V °C Ordering Information Part No. KBPC15005 thru KBPC1510 Re
