KBPC1510, KBPC15005 Datasheet - Eris

KBPC1510 Glass Passivated Bridge Rectifiers

KBPC1510 Features

* ‧Glass passivated die construction ‧Low forward voltage drop ‧High current capability ‧High surge current capability ‧Plastic material-UL flammability 94V-0 Primary Characteristics IF VRRM IFSM VF TJ max 15 50~1000 300 1.1 150 A V A V °C Ordering Information Part No. KBPC15005 thru KBPC1510 Re

KBPC15005-Eris.pdf

This datasheet PDF includes multiple part numbers: KBPC1510, KBPC15005. Please refer to the document for exact specifications by model.

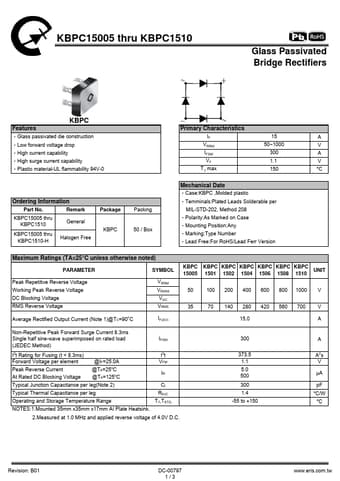

KBPC1510 Datasheet Preview Page 2 KBPC1510 Datasheet Preview Page 3

Datasheet Details

Part number:

KBPC1510, KBPC15005

Manufacturer:

Eris

File Size:

305.24 KB

Description:

Glass passivated bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: KBPC1510, KBPC15005.
Please refer to the document for exact specifications by model.
