S2G General Purpose Rectifiers

S2G Description

S2A thru S2Y General Purpose Rectifiers Glass Passivation Junction DO-214AA(SMB) .

S2G Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. S2x Remark General S2x-H Halogen Free S2x-Q AEC-Q101 qualified Package Packing SMB 3000 / Tape & Reel Primary Characteristics IF 2 VRRM 5

📥 Download Datasheet

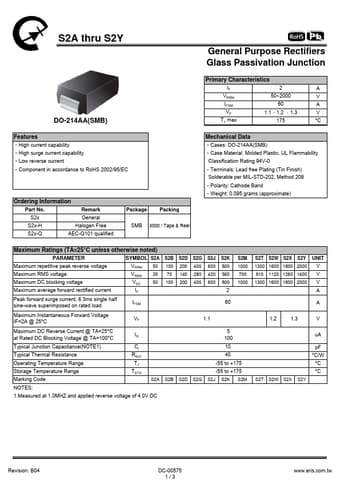

Preview of S2G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2G
Manufacturer
Eris
File Size
279.63 KB
Datasheet
S2G-Eris.pdf
Description
General Purpose Rectifiers
