S5BC

The S5BC is General Purpose Rectifiers designed by Eris.

Product Overview

Eris

Part number	S5BC
Manufacturer	Eris
File Size	350.28 KB
Description	General Purpose Rectifiers
Datasheet	S5BC-Eris.pdf

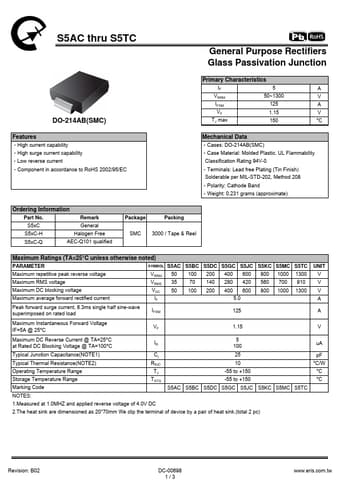

Additional preview pages of the S5BC datasheet.

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 5 VRRM 50~1300 IFSM 125 VF 1.15 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-214AB(SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate) Ordering Information Part No.
