S5BBF-PJ - Surface Mount General Purpose Silicon Rectifiers

S5BBF-PJ Description

S5ABF-PJ~S5MBF-PJ Surface Mount General Purpose Silicon Rectifiers .

S5BBF-PJ Applications

* Glass passivated chip junction
* Low profile package
* Easy to pick and place SMBF 1 2 1.Cathode 2.Anode Marking Code： S5ABF-PJ：S5AB S5BBF-PJ：S5BB S5DBF-PJ：S5DB S5GBF-PJ：S5GB S5JBF-PJ：S5JB S5KBF-PJ：S5KB S5MBF-PJ：S5MB Maximum Ratings and Electrical Characteristics Ratings at 25℃

📥 Download Datasheet

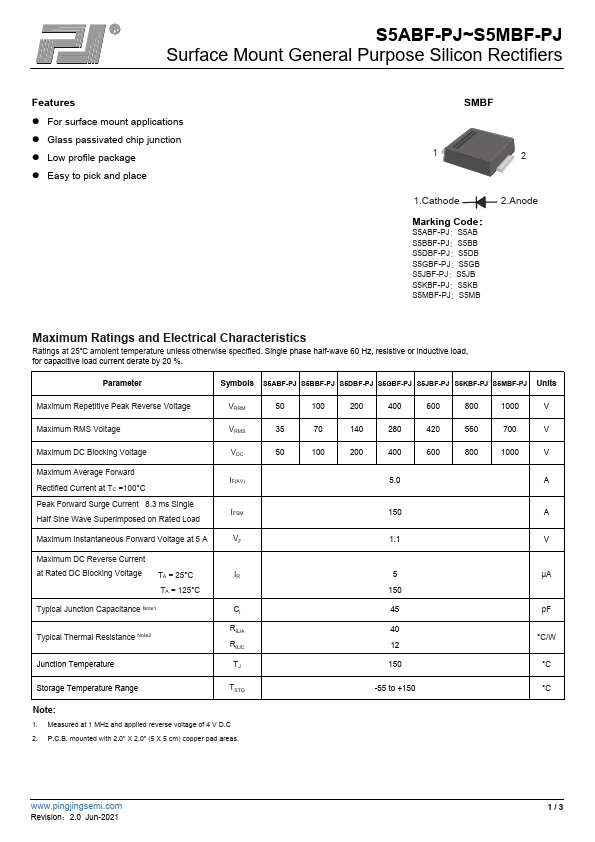

Preview of S5BBF-PJ PDF

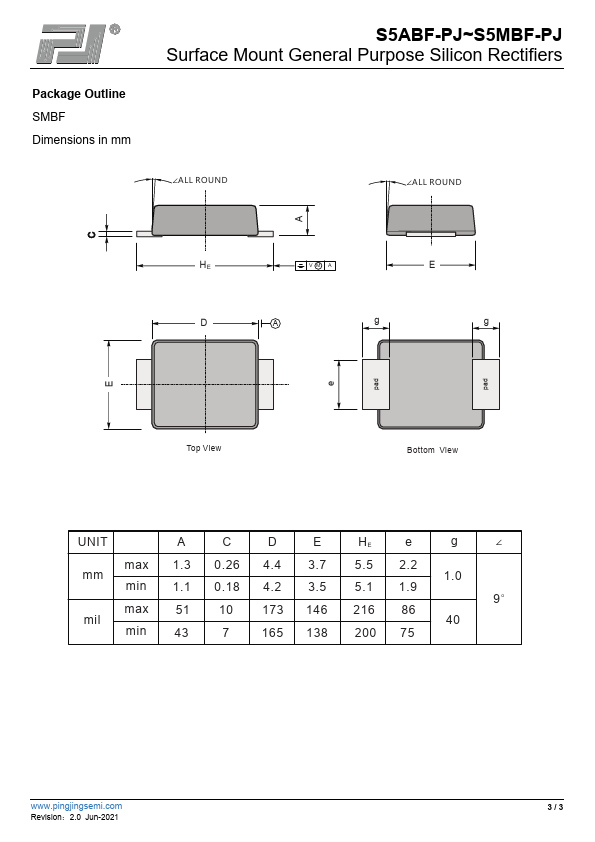

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S5BBF-PJ
Manufacturer
PJ
File Size
419.44 KB
Datasheet
S5BBF-PJ-PJ.pdf
Description
Surface Mount General Purpose Silicon Rectifiers
