SF38

The SF38 is Super Fast Recovery Rectifiers designed by Eris.

Product Overview

Eris

📥 Download Datasheet

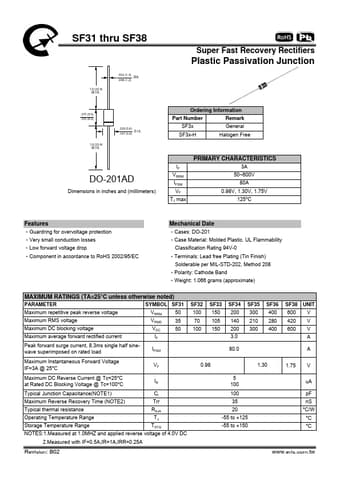

SF38 Super Fast Recovery Rectifiers by Eris - Datasheet Preview — Datasheet preview – SF38

Datasheet Details

Part number	SF38, SF31
Manufacturer	Eris
File Size	150.59 KB
Description	Super Fast Recovery Rectifiers
Datasheet	SF31-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SF38, SF31. Please refer to the document for exact specifications by model.
Additional preview pages of the SF38 datasheet.

Product details

Features

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Date ‧Cases: DO-201 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.066 grams (approximate).
