SF3000A-AS Datasheet - Soshin

SF3000A-AS Common mode:Wide band/High attenuation Dood

SF3000A-AS Series 3 Phase & 3 lines 250VAC Common mode:Wide band/High attenuation Dood for High frequency Application For EMC Anechoic/Shielded Chamber Specifications Part No. SF3010A-AS SF3020A-AS SF3030A-AS SF3050A-AS SF3100A-AS Rated Voltage Rated Current Leakage Current Weight 10A 20A 30A 50A 100A 250VAC max 225mA 225mA 225mA 552mA 615mA 7kg 7kg 7kg Dimensions [mm] A B C D E F G H J K L 540 110 80 525 50 45 50 CTC25 40 500 M4 540 110 80 525 50 45 50 CTC25 40 500 M4 590 110 80 575 50 45 50 .

SF3000A-AS Datasheet (84.52 KB)

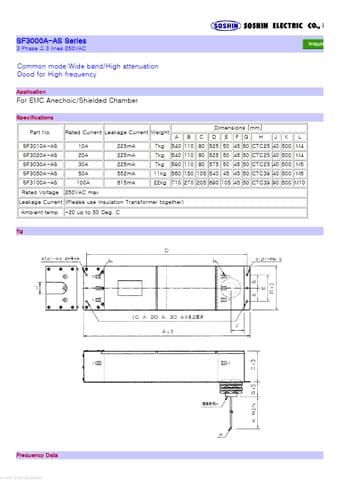

SF3000A-AS Datasheet Preview — Preview of SF3000A-AS PDF

Datasheet Details

Part number:

SF3000A-AS

Manufacturer:

Soshin

File Size:

84.52 KB

Description:

Common mode:wide band/high attenuation dood.
