SF3004-EC10A - For Color Photo Printheads

Rohm

📥 Download Datasheet

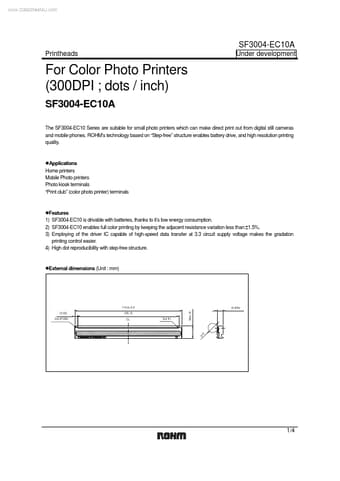

SF3004-EC10A Datasheet Preview — Preview of SF3004-EC10A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SF3004-EC10A
Manufacturer	ROHM ↗
File Size	85.24 KB
Description	For Color Photo Printheads
Datasheet	SF3004-EC10A_Rohm.pdf

SF3004-EC10A Product details

Features

1) SF3004-EC10 is drivable with batteries, thanks to it’s low energy consumption. 2) SF3004-EC10 enables full color printing by keeping the adjacent resistance variation less than ±1.5%. 3) Employing of the driver IC capable of high-speed data transfer at 3.3 circuit supply voltage makes the gradation printing control easier. 4) High dot reproducibility with step-free structure. zExternal dimensions (Unit : mm) 114.2± 0.2 (3.02) Dot #1280 108.16 CL Dot #1 (5.835) Max.14 0 φ1 1/4 SF3004-EC.
