SM350A - Schottky Barrier Rectifiers

This page provides the datasheet information for the SM350A, a member of the SM320A Schottky Barrier Rectifiers family.

Features

  • ‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case：DO-214AC(SMA) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight: 0.062 grams (approximate) Ordering Information Part No. Remark SM3xxA.

📥 Download Datasheet

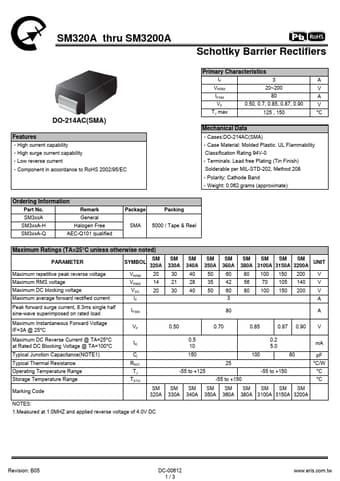

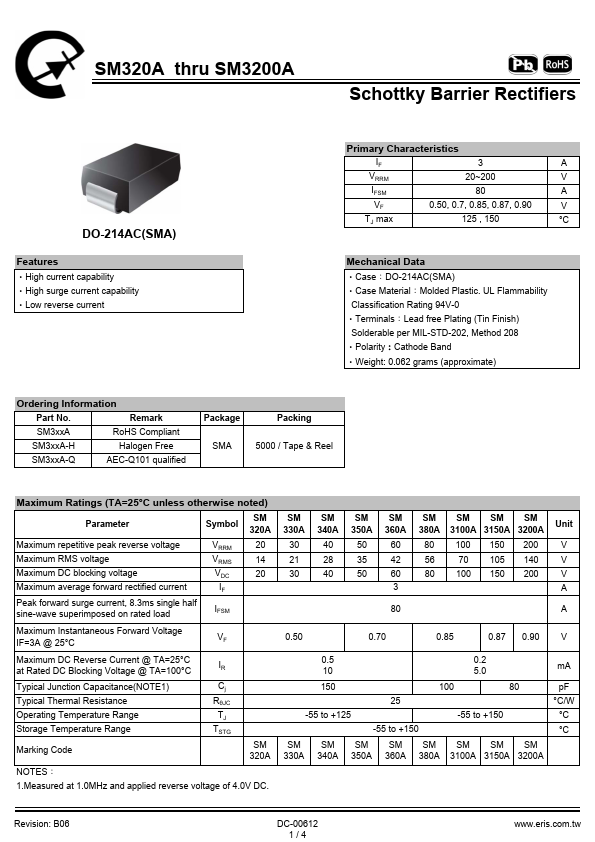

Datasheet preview – SM350A

Datasheet Details

Part number SM350A
Manufacturer Eris
File Size 348.30 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet SM350A Datasheet

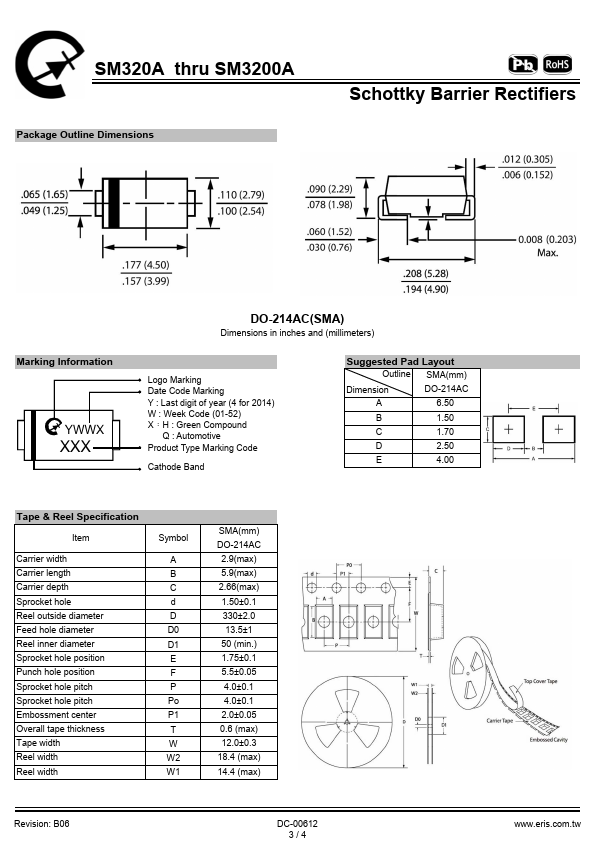

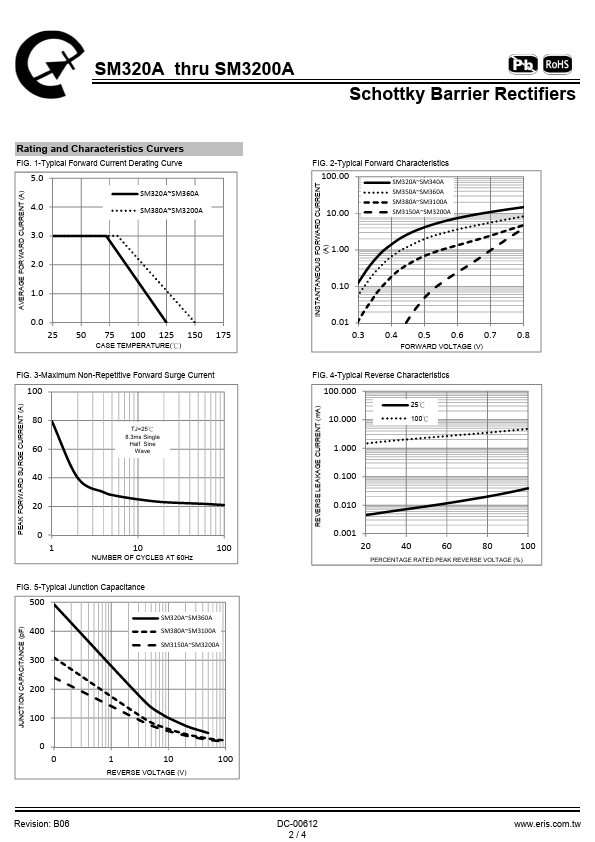

Additional preview pages of the SM350A datasheet.

📁 Similar Datasheet

  • SM350A - Schottky Barrier Rectifiers (Leshan Radio Company)
  • SM350A - Schottky Barrier Rectifiers (UPM)
  • SM350AF - Schottky Barrier Rectifiers (Leshan Radio Company)
  • SM350 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Dc Components)
  • SM3503 - 4-Bit Single-Chip Microcomputer(For Data Bank Use) (Sharp Electrionic Components)
  • SM3504 - 4-Bit Single-Chip Microcomputer(For Data Bank Use) (Sharp Electrionic Components)
  • SM3507 - 4-Bit Single-Chip Microcomputer(For Data Bank Use) (Sharp Electrionic Components)
  • SM3508 - 4-Bit Single-Chip Microcomputer(For Data Bank Use) (Sharp Electrionic Components)
  • SM3509 - 4-Bit Single-Chip Microcomputer(For Data Bank Use) (Sharp Electrionic Components)
  • SM350B - 3.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (UNIOHM CORPORATION)
Other Datasheets by Eris

Full PDF Text Transcription

Click to expand full text
SM320A thru SM3200A Schottky Barrier Rectifiers DO-214AC(SMA) Features ‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case：DO-214AC(SMA) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight: 0.062 grams (approximate) Ordering Information Part No.
