SM380B, SM320B - Schottky Barrier Rectifiers

SM380B Description

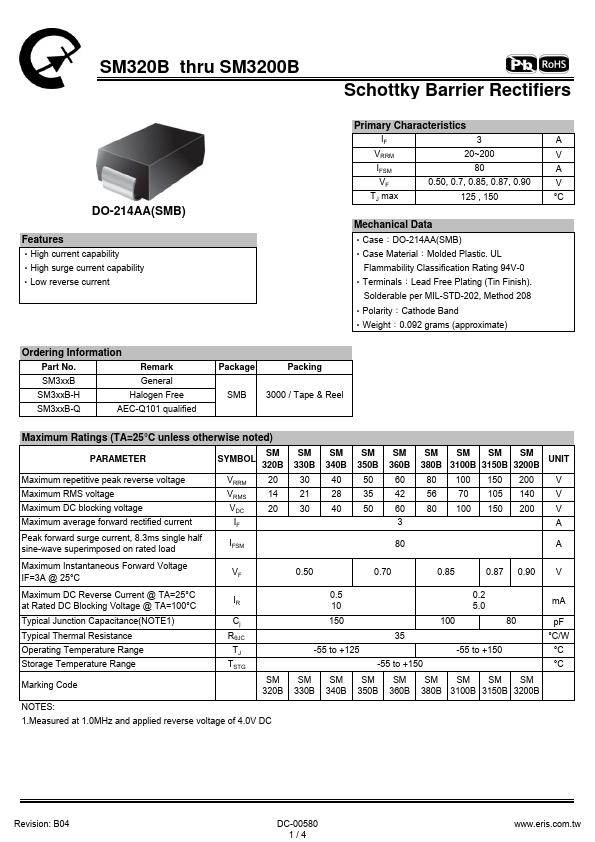

SM320B thru SM3200B Schottky Barrier Rectifiers DO-214AA(SMB) .

SM380B Features

* ‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case：DO-214AA(SMB) ‧Case Material：Molded Plastic. UL Flammability Classification

SM380B Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM380B, SM320B. Please refer to the document for exact specifications by model.

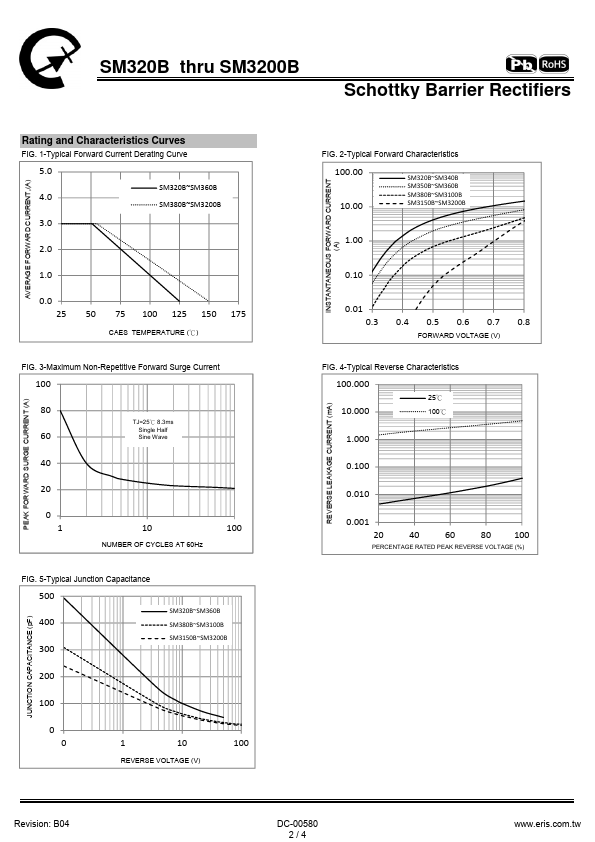

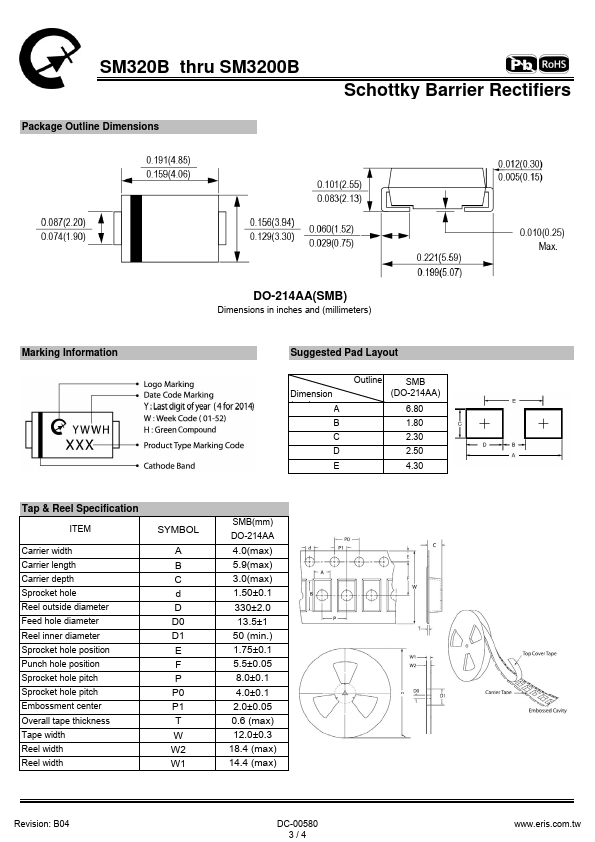

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM380B, SM320B
Manufacturer
Eris
File Size
419.17 KB
Datasheet
SM320B-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM380B, SM320B.
Please refer to the document for exact specifications by model.
