SM8200B, SM820B - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

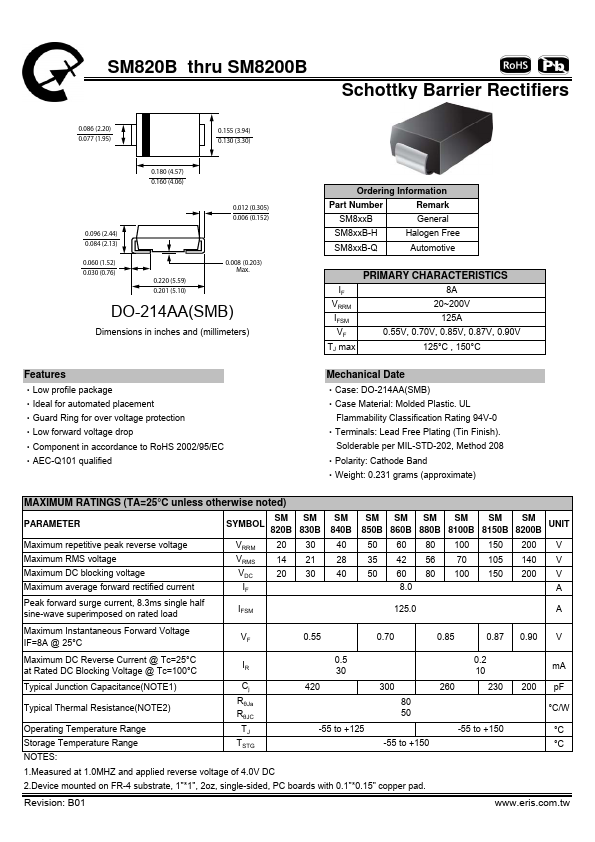

SM8200B Datasheet Preview — This datasheet PDF includes multiple part numbers: SM8200B, SM820B. Please refer to the document for exact specifications by model.

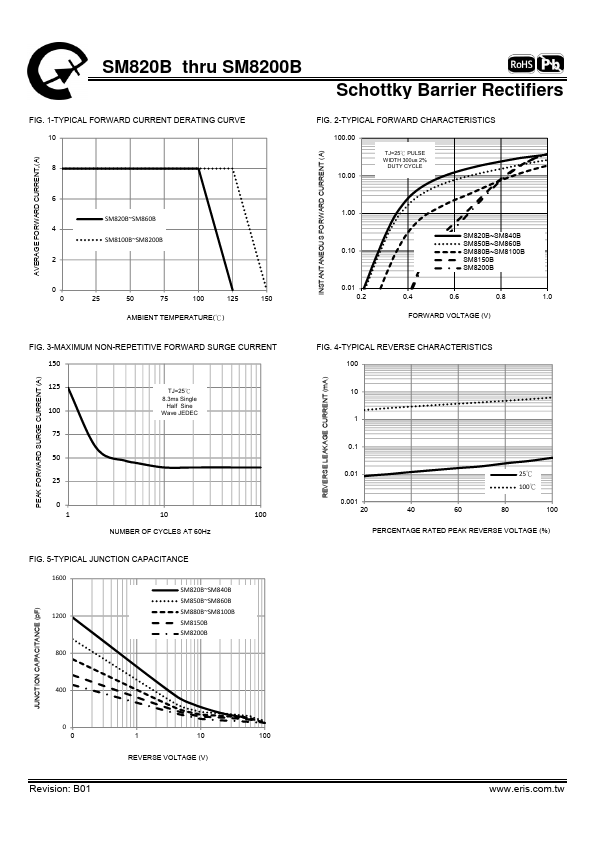

datasheet Preview Page 2

Datasheet Details

Part number: SM8200B, SM820B
Manufacturer: Eris
File Size: 198.96 KB
Datasheet: SM820B-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM8200B, SM820B.
Please refer to the document for exact specifications by model.

SM8200B Product details

Features

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate).
