SMB2EZ3.3D5, SMB2EZ2.7D5 - Surface Mount Device

Eris

📥 Download Datasheet

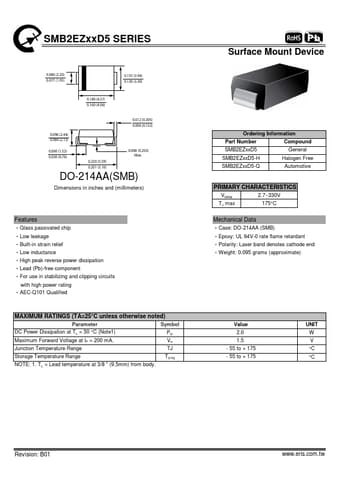

SMB2EZ3.3D5 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMB2EZ3.3D5, SMB2EZ2.7D5. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SMB2EZ3.3D5, SMB2EZ2.7D5
Manufacturer	Eris
File Size	167.99 KB
Description	Surface Mount Device
Datasheet	SMB2EZ2.7D5-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SMB2EZ3.3D5, SMB2EZ2.7D5. Please refer to the document for exact specifications by model.

SMB2EZ3.3D5 Product details

Features

‧Glass passivated chip ‧Low leakage ‧Built-in strain relief ‧Low inductance ‧High peak reverse power dissipation ‧Lead (Pb)-free component ‧For use in stabilizing and clipping circuits with high power rating ‧AEC-Q101 Qualified Mechanical Data ‧Case: DO-214AA (SMB) ‧Epoxy: UL 94V-0 rate flame retardant ‧Polarity: Laser band denotes cathode end ‧Weight: 0.095 grams (approximate).
