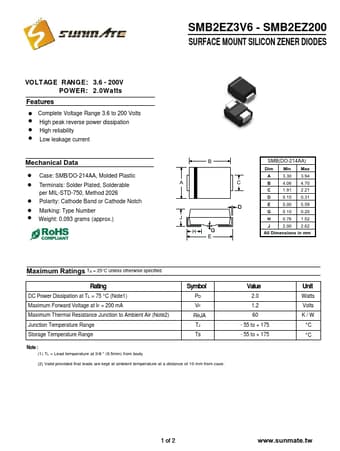

SMB2EZ30, SMB2EZ3V6 SURFACE MOUNT SILICON ZENER DIODES

SMB2EZ30 Description

SMB2EZ3V6 - SMB2EZ200 SURFACE MOUNT SILICON ZENER DIODES VOLTAGE RANGE: 3.6 - 200V POWER: 2.0Wa t t s .

SMB2EZ30 Features

* ! Complete Voltage Range 3.6 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMB2EZ30, SMB2EZ3V6. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
SMB2EZ30, SMB2EZ3V6
Manufacturer
SunMate
File Size
122.30 KB
Datasheet
SMB2EZ3V6-SunMate.pdf
Description
SURFACE MOUNT SILICON ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: SMB2EZ30, SMB2EZ3V6.
Please refer to the document for exact specifications by model.
