* ‧Constructed with Glass Passivated Die ‧3000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 Qualified Mechanical Data ‧Cases: DO-214AB(SMC) ‧Case Material: Molded Plastic. UL Fla
SMDJ110A Datasheet (541.18 KB)
SMDJ110A
Eris
541.18 KB
Transient voltage suppressors.

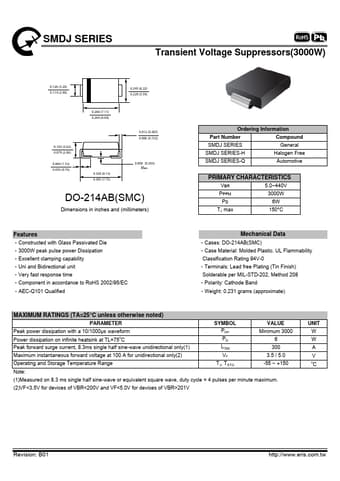

SMDJ SERIES
Transient Voltage Suppressors(3000W)
0.126 (3.20) 0.114 (2.90)
0.245 (6.22) 0.220 (5.59)
0.280 (7.11) 0.260 (6.60)
0.103 (2.62) 0.079.
