SMDJ18A Datasheet - Eris

SMDJ18A Transient Voltage Suppressors

SMDJ SERIES Transient Voltage Suppressors(3000W) 0.126 (3.20) 0.114 (2.90) 0.245 (6.22) 0.220 (5.59) 0.280 (7.11) 0.260 (6.60) 0.103 (2.62) 0.079 (2.06) 0.060 (1.52) 0.030 (0.76) 0.320 (8.13) 0.305 (7.75) 0.012 (0.305) 0.006 (0.152) 0.008 (0.203) Max. DO-214AB(SMC) Dimensions in inches and (millimeters) Ordering Information Part Number Compound SMDJ SERIES General SMDJ SERIES-H Halogen Free SMDJ SERIES-Q Automotive PRIMARY CHARACTERISTICS VBR 5.0~440V PPPM 3000W PD 6W TJ m.

SMDJ18A Features

* ‧Constructed with Glass Passivated Die ‧3000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 Qualified Mechanical Data ‧Cases: DO-214AB(SMC) ‧Case Material: Molded Plastic. UL Fla

SMDJ18A Datasheet (541.18 KB)

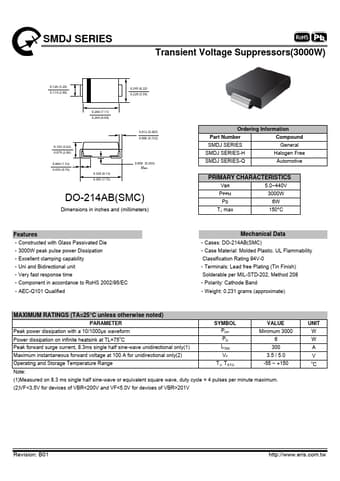

Preview of SMDJ18A PDF
SMDJ18A Datasheet Preview Page 2 SMDJ18A Datasheet Preview Page 3

Datasheet Details

Part number:

SMDJ18A

Manufacturer:

Eris

File Size:

541.18 KB

Description:

Transient voltage suppressors.
