SMZ1220A, SMZ1110A Datasheet - Eris

SMZ1220A Zener Diode

SMZ1220A Features

* ‧Glass passivated chip ‧Low leakage ‧Built-in strain relief ‧Low inductance ‧High peak reverse power dissipation ‧Lead (Pb)-free component ‧For use in stabilizing and clipping circuits with high power rating Ordering Information Part No. SML Series SML Series-H SML Series-Q Remark General Halogen

SMZ1110A-Eris.pdf

This datasheet PDF includes multiple part numbers: SMZ1220A, SMZ1110A. Please refer to the document for exact specifications by model.

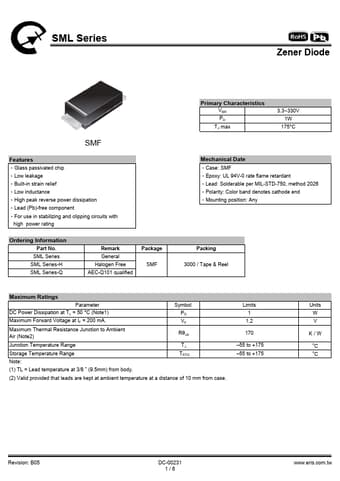

SMZ1220A Datasheet Preview Page 2 SMZ1220A Datasheet Preview Page 3

Datasheet Details

Part number:

SMZ1220A, SMZ1110A

Manufacturer:

Eris

File Size:

245.93 KB

Description:

Zener diode.

Note:

This datasheet PDF includes multiple part numbers: SMZ1220A, SMZ1110A.
Please refer to the document for exact specifications by model.
