SP3080C, SP3020C - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

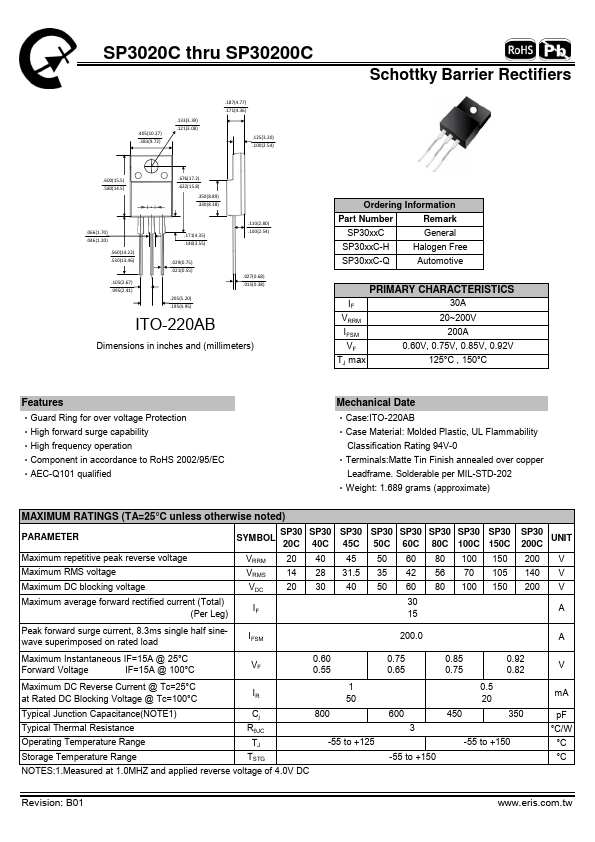

SP3080C Datasheet Preview — This datasheet PDF includes multiple part numbers: SP3080C, SP3020C. Please refer to the document for exact specifications by model.

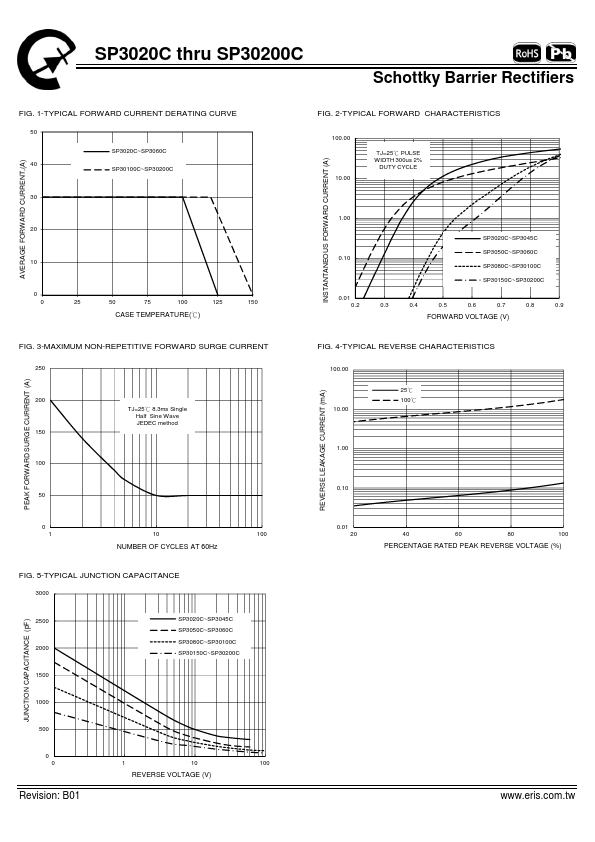

datasheet Preview Page 2

Datasheet Details

Part number	SP3080C, SP3020C
Manufacturer	Eris
File Size	201.97 KB
Description	Schottky Barrier Rectifiers
Datasheet	SP3020C-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SP3080C, SP3020C. Please refer to the document for exact specifications by model.

SP3080C Product details

Features

‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case:ITO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals:Matte Tin Finish annealed over copper Leadframe. Solderable per MIL-STD-202 ‧Weight: 1.689 grams (approximate).
