* ‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Schottky Barrier Rectifiers Ordering Information Part Number SR2xx Remark General SR2xx-H Halogen Free SR2xx-Q Automotive IF VRRM IFS
SR2200
Eris
176.67 KB
Schottkybarrier rectifiers.

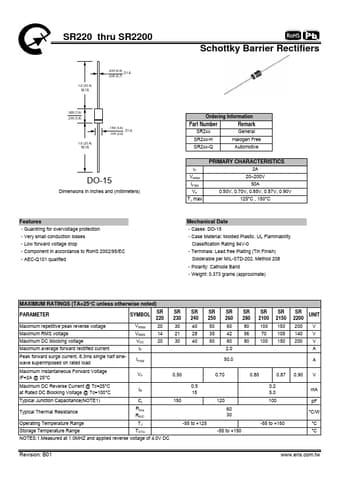

SR220 thru SR2200
1.0 (25.4) MIN.
.034 (0.9) DIA.
.028 (0.7)
.300 (7.6) .230 (5.8)
1.0 (25.4) MIN.
.140 (3.6) .104 (2.6) D I A .
DO-15
Dimensions.
