SR20200C - SchottkyBarrier Rectifiers

This page provides the datasheet information for the SR20200C, a member of the SR2020C SchottkyBarrier Rectifiers family.

Datasheet Summary

Features

  • ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. SR20xxC Package Packing TO-220AB 50 & 2000 / Tube & Box Primary Characteristics IF 20 VRRM 20~200 IFSM 150 VF 0.55、0.70、0.85、0.92 TJ max 125、150 A V A V °C Mechanical Data ‧Case: TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper.

📥 Download Datasheet

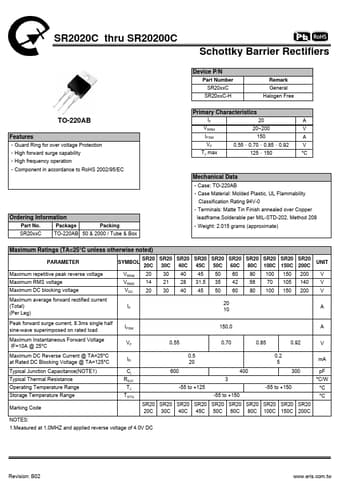

Datasheet preview – SR20200C

Datasheet Details

Part number SR20200C
Manufacturer Eris
File Size 272.45 KB
Description SchottkyBarrier Rectifiers
