R SEMICONDUCTOR

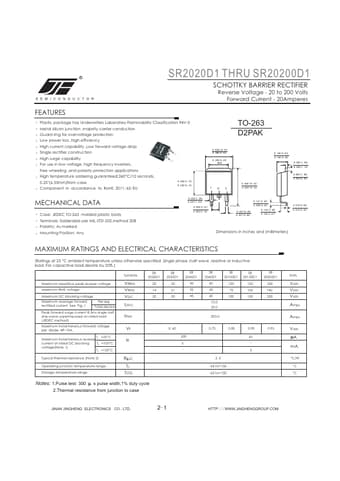

SR2020D1 THRU SR20200D1
SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 200 Volts Forward Current - 20Amperes
FEATURES
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Metal silicon junction ,majority carrier conduction
Guard ring for overvoltage protection
Low power loss ,high efficiency
SR206J0FCT
High current capability ,Low forward voltage drop
Single rectifier construction
High surge capability
For use in low voltage ,high frequency inverters,
free wheeling ,and polarity protection applications
High temperature soldering guaranteed:260°C/10 seconds,
0.25"(6.35mm)from case Component in accordance to RoHS 2011/65/EU
0.360(9.14) 0.320(8.13)
TO-263 D2PAK
0.420(10.67) 0.380(9.65)
0.245(6.22) MIN
1K2
0.639(16.22) 0.560(14.
SR20200D1 Datasheet
