SR2020 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers

This page provides the datasheet information for the SR2020, a member of the SR2030 (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers family.

Datasheet Summary

Features

  • Low forward voltage drop High current capability High reliability High surge current capability TO-220 Mechanical Data Cases: TO-220 molded plastic Epoxy: UL 94V-O rate flame retardant Terminals: Lead solderable per MIL-STD-202, Method 208 guaranteed Polarity: As marked High temperature soldering guaranteed: 260OC/10 seconds .25”,(6.35mm) from case. Weight: 2.24 grams Maximum Ratings and Electrical Characteristics Rating at 25℃ambient temperature unless otherwise specified. Single phase, half.

📥 Download Datasheet

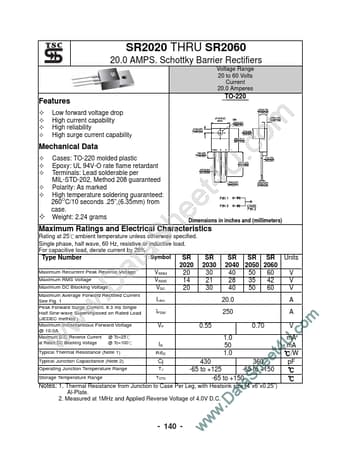

Datasheet preview – SR2020

Datasheet Details

Part number SR2020
Manufacturer Taiwan Semiconductor Company
File Size 118.34 KB
Description (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers
Datasheet download datasheet SR2020 Datasheet
Additional preview pages of the SR2020 datasheet.

📁 Similar Datasheet

  • SR2020 - 20 A Schottky Barrier Rectifiers (UPM)
  • SR2020 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SR2020 - SCHOTTKY BARRIER RECTIFIER (MIC)
  • SR20200 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SR20200 - SCHOTTKY BARRIER RECTIFIER (MIC)
  • SR20200C - SchottkyBarrier Rectifiers (Eris)
  • SR20200C - 20.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • SR20200C - SCHOTTKY BARRIER RECTIFIER (CHENG-YI)
  • SR20200C - SCHOTTKY BARRIER RECTIFIER (MIC)
  • SR20200CT - SCHOTTKY BARRIER RECTIFIER (MIC)
Other Datasheets by Taiwan Semiconductor Company
  • SR2030 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers
  • SR2040 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers
  • SR2050 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers
  • SR2060 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text
SR2020 THRU SR2060 20.0 AMPS. Schottky Barrier Rectifiers Voltage Range 20 to 60 Volts Current 20.0 Amperes Features Low forward voltage drop High current capability High reliability High surge current capability TO-220 Mechanical Data Cases: TO-220 molded plastic Epoxy: UL 94V-O rate flame retardant Terminals: Lead solderable per MIL-STD-202, Method 208 guaranteed Polarity: As marked High temperature soldering guaranteed: 260OC/10 seconds .25”,(6.35mm) from case. Weight: 2.24 grams Maximum Ratings and Electrical Characteristics Rating at 25℃ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
