SR2030 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers

Product Overview

Taiwan Semiconductor Company

Part number	SR2030
Manufacturer	Taiwan Semiconductor Company
File Size	118.34 KB
Description	(SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers
Datasheet	SR2030 Datasheet

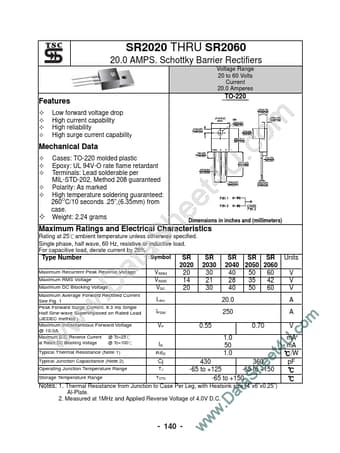

Additional preview pages of the SR2030 datasheet.

Low forward voltage drop High current capability High reliability High surge current capability TO-220 Mechanical Data Cases: TO-220 molded plastic Epoxy: UL 94V-O rate flame retardant Terminals: Lead solderable per MIL-STD-202, Method 208 guaranteed Polarity: As marked High temperature soldering guaranteed: 260OC/10 seconds .25”,(6.35mm) from case. Weight: 2.24 grams Maximum Ratings and Electrical Characteristics Rating at 25℃ambient temperature unless otherwise specified. Single phase, half.
