SR2020PT - Dual Common Cathode Schottky Rectifiers

This page provides the datasheet information for the SR2020PT, a member of the SR2030PT Dual Common Cathode Schottky Rectifiers family.

Datasheet Summary

Features

  • - Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

Datasheet preview – SR2020PT

Datasheet Details

Part number SR2020PT
Manufacturer Taiwan Semiconductor
File Size 206.41 KB
Description Dual Common Cathode Schottky Rectifiers
Datasheet download datasheet SR2020PT Datasheet
Additional preview pages of the SR2020PT datasheet.

📁 Similar Datasheet

  • SR2020P - 20A Schottky Barrier Rectifiers (CUMSUMI)
  • SR2020 - (SR2020 - SR2060) 20.0 AMPS. Schottky Barrier Rectifiers (Taiwan Semiconductor Company)
  • SR2020 - 20 A Schottky Barrier Rectifiers (UPM)
  • SR2020 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SR2020 - SCHOTTKY BARRIER RECTIFIER (MIC)
  • SR20200 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SR20200 - SCHOTTKY BARRIER RECTIFIER (MIC)
  • SR20200C - SchottkyBarrier Rectifiers (Eris)
  • SR20200C - 20.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • SR20200C - SCHOTTKY BARRIER RECTIFIER (CHENG-YI)
Other Datasheets by Taiwan Semiconductor
  • SR202 - 2.0 AMPS. Schottky Barrier Rectifiers
  • SR20100PT - Dual Common Cathode Schottky Rectifiers
  • SR20150PT - Dual Common Cathode Schottky Rectifiers
  • SR203 - 2.0 AMPS. Schottky Barrier Rectifiers
  • SR2030PT - (SR2020PT - SR2060PT) 20.0 Amp Schottky Barrier Rectifiers
  • SR2030PT - (SR2020PT - SR2060PT) 20.0 Amp Schottky Barrier Rectifiers
  • SR204 - 2.0 AMPS. Schottky Barrier Rectifiers
  • SR2040PT - (SR2020PT - SR2060PT) 20.0 Amp Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text

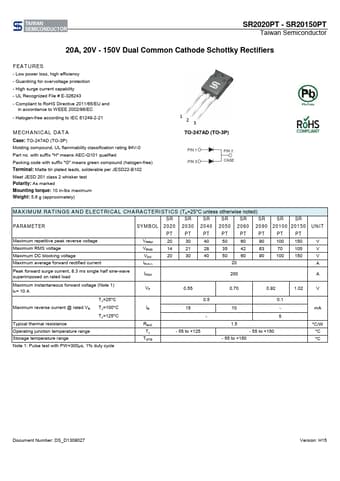

SR2020PT - SR20150PT Taiwan Semiconductor CREAT BY ART 20A, 20V - 150V Dual Common Cathode Schottky Rectifiers FEATURES - Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 MECHANICAL DATA Case: TO-247AD (TO-3P) Molding compound, UL flammability classification rating 94V-0 Part no. with suffix "H" means AEC-Q101 qualified Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: As marked Mounting torque: 10 in-lbs maximum Weight: 5.
