SR40100C, SR4020C - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

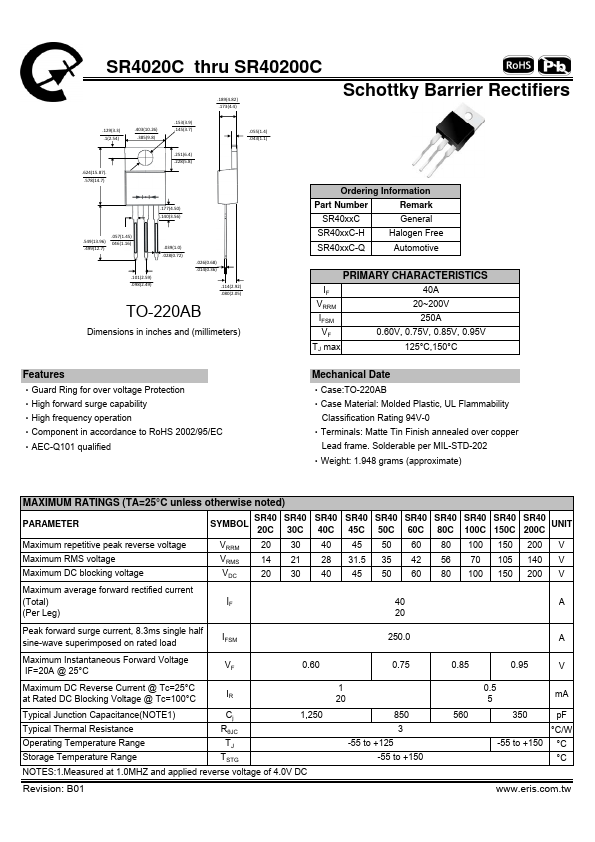

SR40100C Datasheet Preview — This datasheet PDF includes multiple part numbers: SR40100C, SR4020C. Please refer to the document for exact specifications by model.

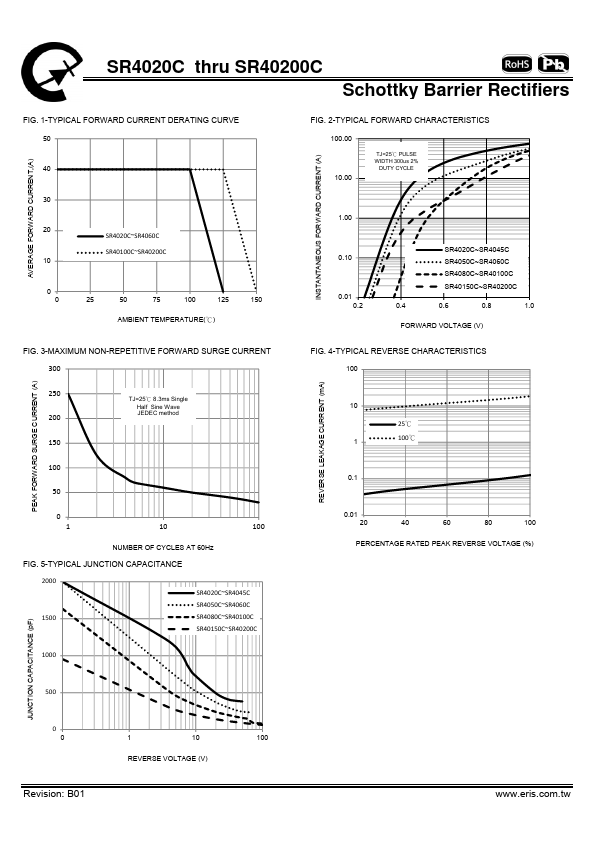

datasheet Preview Page 2

Datasheet Details

Part number	SR40100C, SR4020C
Manufacturer	Eris
File Size	215.21 KB
Description	Schottky Barrier Rectifiers
Datasheet	SR4020C-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SR40100C, SR4020C. Please refer to the document for exact specifications by model.

SR40100C Product details

Features

‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case:TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over copper Lead frame. Solderable per MIL-STD-202 ‧Weight: 1.948 grams (approximate).
