SR4020C - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

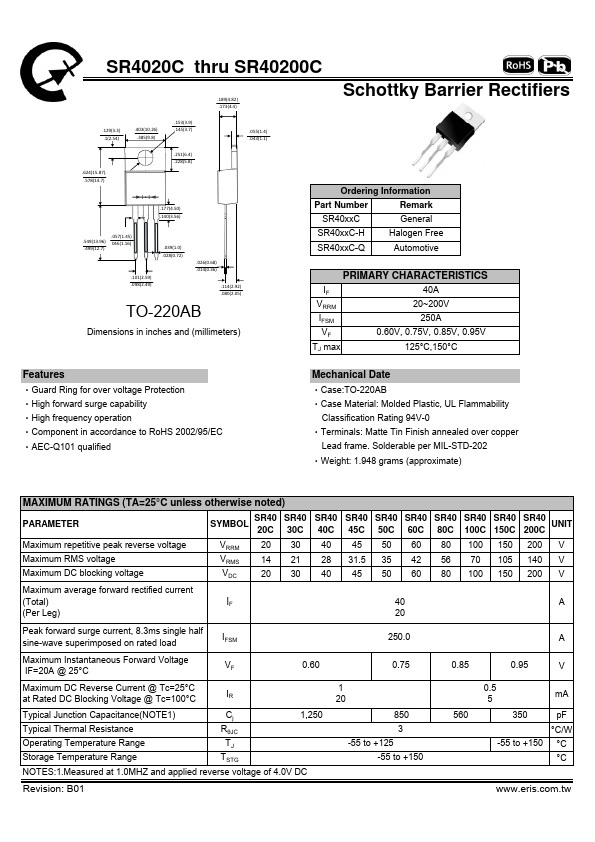

SR4020C Datasheet Preview — Preview of SR4020C PDF

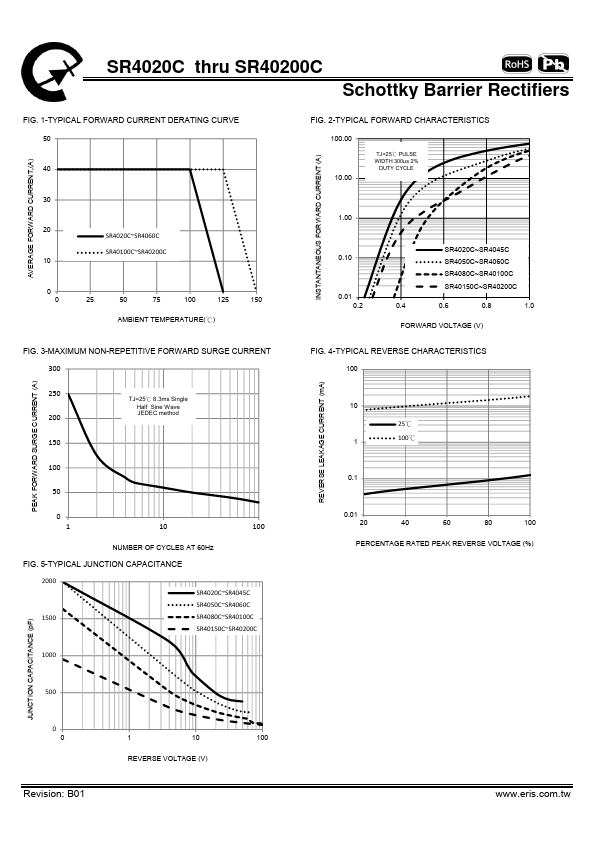

datasheet Preview Page 2

Datasheet Details

Part number	SR4020C
Manufacturer	Eris
File Size	215.21 KB
Description	Schottky Barrier Rectifiers
Datasheet	SR4020C-Eris.pdf

SR4020C Product details

Features

‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case:TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over copper Lead frame. Solderable per MIL-STD-202 ‧Weight: 1.948 grams (approximate).
