ESP32-C3

Ultra-Low-Power SoC

ESP32-C3 Features

* Wi-Fi

* IEEE 802.11 b/g/n-compliant

* Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band

* 1T1R mode with data rate up to 150 Mbps

* Wi-Fi Multimedia (WMM)

* TX/RX A-MPDU, TX/RX A-MSDU

* Immediate Block ACK

* Fragmentation and defragmentation

ESP32-C3 Datasheet (0.96 MB)

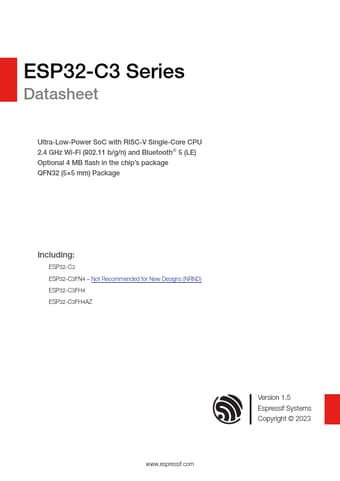

Preview of ESP32-C3 PDF

Datasheet Details

Part number:

ESP32-C3

Manufacturer:

Espressif

File Size:

0.96 MB

Description:

Ultra-low-power soc.
ESP32-C3 Series Datasheet Ultra-Low-Power SoC with RISC-V Single-Core CPU 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE) Optional 4 MB flash in th.
