APA4800

Stereo 290mW 8ohm Speaker Driver

APA4800 Features

* O perating Voltage Single Supply Dual Supply High Signal-to-Noise Ratio Applications

* Portable Digital Audio Personal Computers Microphone Preamplifier 3V to 7V ±1.5V to ± 3.5V 100dB

APA4800 General Description

The APA4800 is an integrated class AB stereo headphone amplifier contained in an SO-8 or a DIP-8 plastic package . The APA4800 is capable of delivering 290mW of max . output power to an 8Ω load with less than 10% (THD+N) from a 5V power supply . The device has been primarily developed for portable d.

APA4800 Datasheet (124.36 KB)

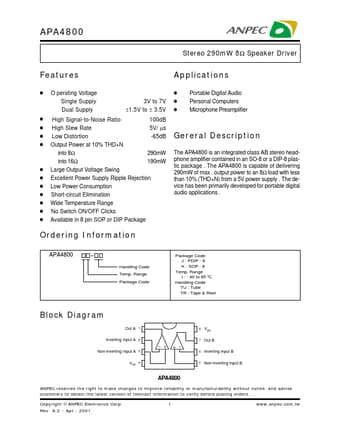

Preview of APA4800 PDF

Datasheet Details

Part number:

APA4800

Manufacturer:

Etc

File Size:

124.36 KB

Description:

Stereo 290mw 8ohm speaker driver.
