APA4880

Stereo 330mW 8W Speak Driver

APA4880 Features

* Operating Voltage - Single Supply 3V to 7V - Dual Supply ±1.5V to ± 3.5V

* Depop Circuitry Integrated.

* High Signal-to-Noise Ratio, 100dB

* High Slew Rate, 5.5V/ms

* Low Distortion, -66dB

* Output Power at 10% THD+N - into 8Ω, 330mW - into 16Ω, 200m

APA4880 General Description

The APA4880 is an integrated class AB stereo headphone amplifier contained in SOP-8, TSSOP-8, and MSOP-8 plastic package. The APA4880 is capable of delivering 330mW of max. Output power to an 8Ω load with less than 10% (THD+N) from a 5V power supply. The device has been primarily developed for porta.

APA4880 Datasheet (203.76 KB)

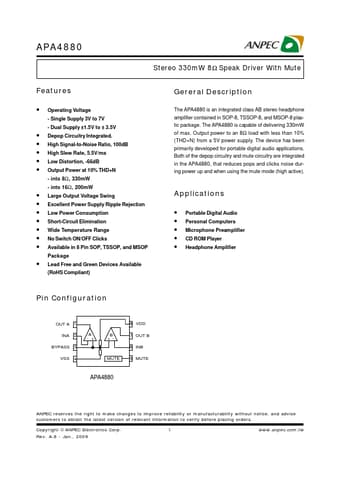

Preview of APA4880 PDF

Datasheet Details

Part number:

APA4880

Manufacturer:

ANPEC

File Size:

203.76 KB

Description:

Stereo 330mw 8w speak driver.
