ET6226 Datasheet, circuit, Etek Microelectronics

ET6226 Features

• Circuit Display mode: 8×4bit Segment drive current is not less than 25mA, bit drive current is not less than 150mA Provide eight brightness control Keyboard scanning: 7×4bit High­speed two­wire

PDF File Details

Part number:

ET6226

Manufacturer:

Etek Microelectronics

File Size:

90.66kb

Download:

📄 Datasheet

Description:

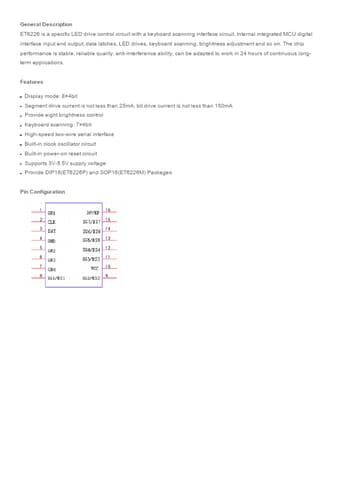

Led drive control circuit. ET6226 is a specific LED drive control circuit with a keyboard scanning interface circuit. Internal integrated MCU digital interface

ET6226 Application

• Applications Features Display mode: 8×4bit Segment drive current is not less than 25mA, bit drive current is not less than 150mA Provide eight brig
