ET9366

Constant frequency charge pump DC/DC converter

ET9366 Features

* VIN Range: 2.5V to 6.0V Fully Programmable Current with Single Wire

* 16 Current Levels Drives up to Six Channels of LEDs Overcurrent and Overtemperature Protected No Inductors, Low Noise Operation Small Application Circuit Automatic Soft Start I Q

ET9366 General Description

The ET9366 is a low noise, constant frequency charge pump DC/DC converter for white LED applications. The ET9366 is capable of driving up to six channels of LEDs at preset 25mA per channel from a 2.5V to 6.0V input. The current sinks may be operated individually  parallel for driving higher current .

ET9366 Datasheet (148.47 KB)

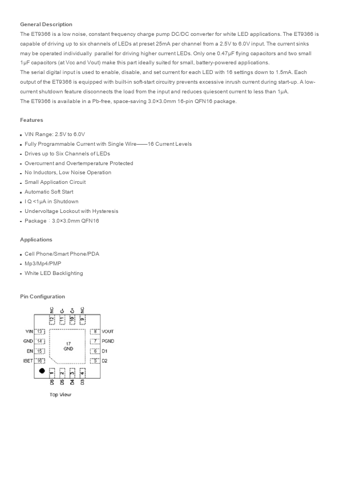

Preview of ET9366 PDF

Datasheet Details

Part number:

ET9366

Manufacturer:

Etek Microelectronics

File Size:

148.47 KB

Description:

Constant frequency charge pump dc/dc converter.
