ET9570

3-CHANNEL DIFFERENTIAL AMPLIFIER COMPARATOR

ET9570 Features

* Supply Voltage Range 4.5V to 30V

* Operation to 1MHz

* Designed for photodiode inputs

* Index gated by A and B channels

* Current sink for LED drive (see application note APP-D2)

* Outputs short circuit protected

* 25mA peak drive current APP

ET9570 General Description

These devices are specifically designed as receiver circuits for the photodiode signals available in optical encoders. Connect the anode of the photodiodes to the input pins, with the cathode(s) connected to Vcc for reverse-bias operation. The input amplifiers have a dynamic range of nearly 1000:1, .

ET9570 Datasheet (35.41 KB)

Preview of ET9570 PDF

Datasheet Details

Part number:

ET9570

Manufacturer:

IC Haus

File Size:

35.41 KB

Description:

3-channel differential amplifier comparator.

📁 Related Datasheet

ET9570LH - 3-Ch. Diff. Amplifier-comparator (IC Haus)
3 CHANNEL DIFFERENTIAL AMPLIFIER-COMPARATOR (Lower hysteresis version of standard ET9570) ET9570LH FEATURES • • • • • • • • Supply Voltage Range 4.5.

ET9571 - 3-Ch. Diff. Amplifier-comparator (IC Haus)
3 CHANNEL DIFFERENTIAL AMPLIFIER-COMPARATOR (Phototransistor input version of the standard ET9570) ET9571 FEATURES • • • • • • Supply Voltage Range .

ET9501 - Single Lithium-Ion or Lithium-Polymer cell linear battery charger (Etek Microelectronics)
General Description The ET9501 is a single Lithium­Ion or Lithium­Polymer cell linear battery charger which is designed for pact and cost­ sensitiv.

ET9510A - Lithium battery mobile power integrated control IC (Etek Microelectronics)
Etek Microelectronics ET9510A/B IC ET9510 。,, ,,。 ,。 z :4.5V~6.0V z ,, z MOS 500mA(TSSOP20 ), MOS 2A z , z z 700KHz(TSSOP20 1.3MHz) z 90%.

ET9510B - Lithium battery mobile power integrated control IC (Etek Microelectronics)
Etek Microelectronics ET9510A/B IC ET9510 。,, ,,。 ,。 z :4.5V~6.0V z ,, z MOS 500mA(TSSOP20 ), MOS 2A z , z z 700KHz(TSSOP20 1.3MHz) z 90%.

ET9518 - 1.5A Rechargeable lithium battery protection circuit (Etek Microelectronics)
Etek Microelectronics ET9518 1.5A ET9518 ,,,。 ,。, 。 ACIN ,。 GATDRV 。 25℃, GATDRV ,OUT 200 。ET9518 , ,。 VVCDT/VACIN , OUT ACIN ,。ET9518 , IC P.

ET9560 - 3 CHANNEL DIFFERENTIAL AMPLIFIER-COMPARATOR (ETIC)
.. 3 CHANNEL DIFFERENTIAL AMPLIFIER-COMPARATOR (For 2 data channels and ungated index channel) ET9560 FEATURES • • • • • • • Suppl.

ET9561 - 3 CHANNEL DIFFERENTIAL AMPLIFIER-COMPARATOR (ETIC)
3 CHANNEL DIFFERENTIAL AMPLIFIER-COMPARATOR Phototransistor input version of the standard ET9560 FEATURES • Supply Voltage Range 4.5V to 30V • Designe.

TAGS

ET9570 3-CHANNEL DIFFERENTIAL AMPLIFIER COMPARATOR IC Haus

Image Gallery

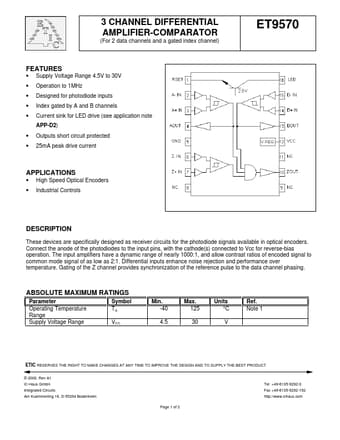

ET9570 Datasheet Preview Page 2
