EUP3406 - 600mA Synchronous Step-Down Converter

Product Overview

Eutech Microelectronics

📥 Download Datasheet

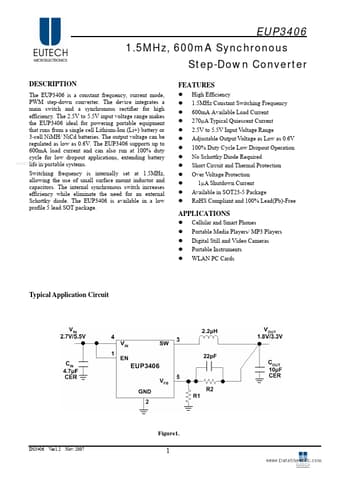

EUP3406 600mA Synchronous Step-Down Converter by Eutech Microelectronics - Datasheet Preview — Datasheet preview – EUP3406

Datasheet Details

Part number	EUP3406
Manufacturer	Eutech Microelectronics
File Size	766.60 KB
Description	600mA Synchronous Step-Down Converter
Datasheet	EUP3406 Datasheet
Additional preview pages of the EUP3406 datasheet.

Product details

Description

The EUP3406 is a constant frequency, current mode, PWM step-down converter.

Features

z z z z z z z z z z z z z High Efficiency 1.5MHz Constant Switching Frequency 600mA Available Load Current 270µA Typical Quiescent Current 2.5V to 5.5V Input Voltage Range Adjustable Output Voltage as Low as 0.6V 100% Duty Cycle Low Dropout Operation No Schottky Diode Required Short Circuit and Thermal Protection Over Voltage Protection ¡Õ 1µA Shutdown Current Available in SOT23-5 Package RoHS Compliant and 100% Lead(Pb)-Free.
