EUP3484A Datasheet - Eutech Microelectronics

EUP3484A 340KHz Synchronous Step-Down Converter

The EUP3484A is a synchronous current mode buck regulator capable of driving 3A continuous load current with excellent line and load regulation. The EUP3484A can operate with an input range 4.5V to 30V and the output can be externally set from 0.925V to 20V with a resistor divider. Fault condition p.

EUP3484A Features

* 3A Output Current Automatic Pulse Skipping Mode at Light Load 35V Input Surge Protection Integrated 160mΩ/110mΩ DMOS Switches 4.5V to 30V Input Operating Range Output Adjustable from 0.925V to 20V Up to 95% Effi

EUP3484A-EutechMicroelectronics.pdf

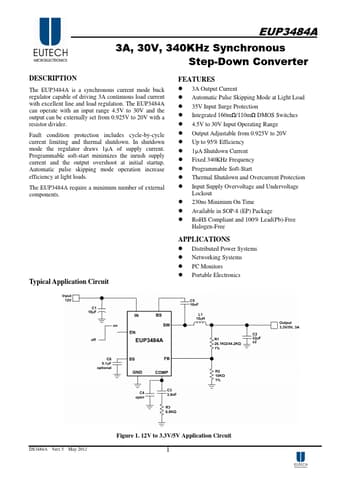

Preview of EUP3484A PDF
EUP3484A Datasheet Preview Page 2 EUP3484A Datasheet Preview Page 3

Datasheet Details

Part number:

EUP3484A

Manufacturer:

Eutech Microelectronics

File Size:

779.45 KB

Description:

340khz synchronous step-down converter.
