EUP7211 Datasheet, Ldo, Eutech Microelectronics

EUP7211 Features

• Ldo z z z Input Voltage Range: 2.5V to 5.5V Stable with Ceramic Output Capacitor 2 LDO Outputs:
• Output 1-150mA Output Current
• Output 2-300mA Output Current Low Dropout V

PDF File Details

Part number:

EUP7211

Manufacturer:

Eutech Microelectronics

File Size:

272.26kb

Download:

📄 Datasheet

Description:

Dual ldo. The EUP7211 is a dual low dropout linear regulator. The first regulator is capable of sourcing 150mA, while the second regulator can

EUP7211 Application

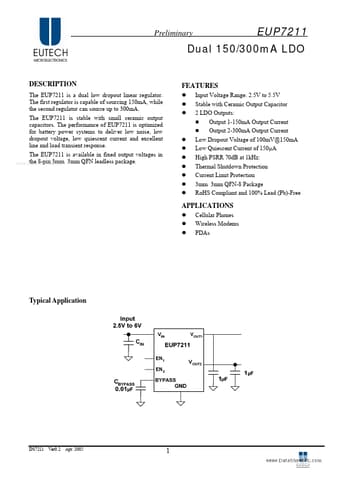

• Applications z z z Cellular Phones Wireless Modems PDAs Typical Application DS7211 Ver0.2 Apr. 2005 1 Preliminary Block Diagram EUP7211 www.Da
