PLR135 Datasheet - EverLight

PLR135, Photo link Light Receiver Unit

Technical Data Sheet Photo link Light Receiver Unit PLR135 .
The optical receiver is packaged with custom optic data link interface, integrated on a proprietary CMOS PDIC process.

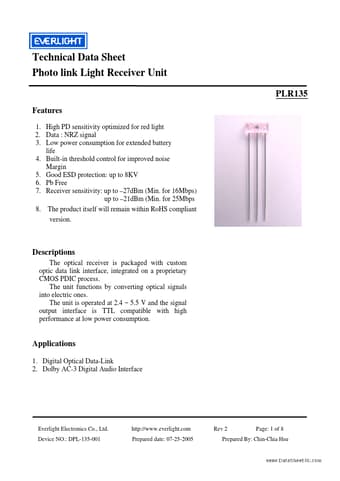

datasheet Preview Page 1 from Datasheet4u.com

PLR135_EverLight.pdf

PLR135 Datasheet Preview — Preview of PLR135 PDF

Datasheet Details

Part number:

PLR135

Manufacturer:

EverLight

File Size:

150.66 KB

Description:

Photo link Light Receiver Unit

Features

* 1. High PD sensitivity optimized for red light 2. Data : NRZ signal 3. Low power consumption for extended battery life 4. Built-in threshold control for improved noise Margin 5. Good ESD protection: up to 8KV 6. Pb Free 7. Receiver sensitivity: up to
* 27dBm (Min. for 16Mbps) up to
* 2

Applications

* 1. Digital Optical Data-Link 2. Dolby AC-3 Digital Audio Interface Everlight Electronics Co. , Ltd. Device NO. : DPL-135-001 http://www. everlight. com Prepared date: 07-25-2005 Rev 2 Page: 1 of 8 Prepared By: Chin-Chia Hsu PLR135 Package Dimensions Pin Function 1 : Vout 2 : GND 3 : Vcc 3 2 1
