PLR155 Photo link Light Receiver Unit

PLR155 Description

Technical Data Sheet Photo link Light Receiver Unit PLR155 Series .
The optical receiver is packaged with custom optic data link interface, integrated on a proprietary CMOS PDIC process.

PLR155 Features

* 1. High PD sensitivity optimized for red light 2. Data : NRZ signal 3. Low power consumption for extended battery life 4. Built-in threshold control for improved noise Margin 5. Good ESD protection: up to 8KV 6. Pb Free 7. Receiver sensitivity: up to
* 27dBm (Min. for 16Mbps) up to
* 2

PLR155 Applications

* 1. Digital Optical Data-Link 2. Dolby AC-3 Digital Audio Interface EVERLIGHT ELECTRONICS CO. , LTD. Device NO: DPL-155-001 http://www. everlight. com Prepared Date:04-06-2004 Rev 1.0 Page: 1 of 7 Prepared By: Chin-Chia Hsu PLR155 Series Package Dimensions A R1 .40 2.20±0.1 R0 .65 1.50 2.48 AT

📥 Download Datasheet

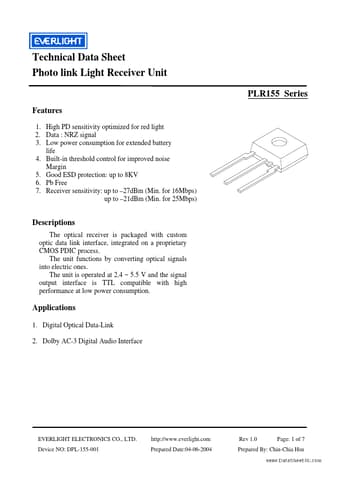

Preview of PLR155 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PLR155
Manufacturer
EverLight
File Size
119.92 KB
Datasheet
PLR155_EverLight.pdf
Description
Photo link Light Receiver Unit
