ES8323

Low Power Stereo Audio CODEC

ES8323 Features

* ADC

* 24-bit, 8 kHz to 96 kHz sampling frequency 95 dB dynamic range, 95 dB signal to noise ratio, -85 dB THD+N Stereo or mono microphone interface with microphone amplifier Auto level control and noise gate 2-to-1 analog input selection Various analog input mixing and gains 24-bit

ES8323 General Description

ES8323 is a high performance, low power and low cost audio CODEC. It consists of 2-ch ADC, 2-ch DAC, microphone amplifier, headphone amplifier, digital sound effects, and analog mixing and gain functions.

* The device uses advanced multi-bit delta-sigma modulation technique to convert data b.

ES8323 Datasheet (627.13 KB)

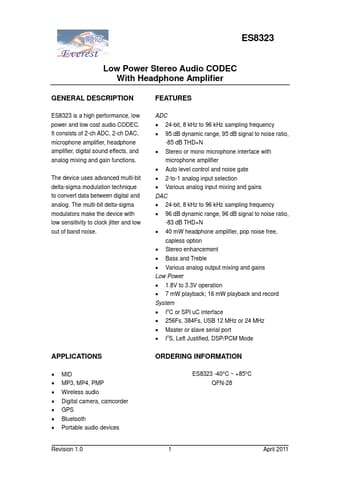

Preview of ES8323 PDF

Datasheet Details

Part number:

ES8323

Manufacturer:

Everest Semiconductor

File Size:

627.13 KB

Description:

Low power stereo audio codec.
