ELT-511EWA - Technical Data Sheet 0.56inch Triple Digit Displays

Everlight Electronics

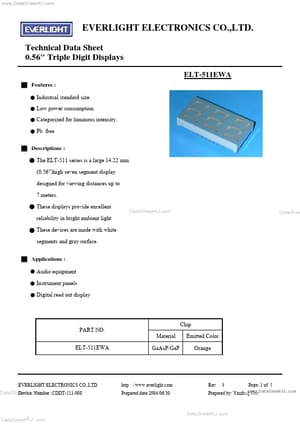

ELT-511EWA Datasheet Preview — Preview of ELT-511EWA PDF

Datasheet Details

Part number	ELT-511EWA
Manufacturer	Everlight Electronics
File Size	328.50 KB
Description	Technical Data Sheet 0.56inch Triple Digit Displays
Datasheet	ELT-511EWA_EverlightElectronics.pdf

ELT-511EWA Product details

Description

: The ELT-511 series is a large 14.22 mm (0.56")high seven segment display designed for viewing distances up to 7 meters. These displays provide excellent reliability in bright ambient light. These devices are made with white segments and gray surface. Applications : DataSheet4U.com DataShee Audio equipment Instrument panels Digital read out display PART NO.ELT-511EWA Chip Material GaAsP/GaP Emitted Color Orange EVERLIGHT ELECTRONICS CO.,LTD.ht

Features

s :.
Industrial standard size. Low power consumption. Categorized for luminous intensity. Pb free.
