ELT-512GWB - Technical Data Sheet 0.56 inch Triple Digit Displays

Everlight Electronics

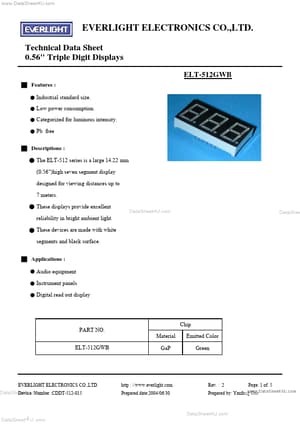

ELT-512GWB Datasheet Preview — Preview of ELT-512GWB PDF

Datasheet Details

Part number	ELT-512GWB
Manufacturer	Everlight Electronics
File Size	328.69 KB
Description	Technical Data Sheet 0.56 inch Triple Digit Displays
Datasheet	ELT-512GWB_EverlightElectronics.pdf

ELT-512GWB Product details

Description

: The ELT-512 series is a large 14.22 mm (0.56")high seven segment display designed for viewing distances up to 7 meters. These displays provide excellent reliability in bright ambient light. These devices are made with white segments and black surface. Applications : DataSheet4U.com DataShee Audio equipment Instrument panels Digital read out display PART NO.ELT-512GWB Chip Material GaP Emitted Color Green EVERLIGHT ELECTRONICS CO.,LTD.http : /

Features

s :.
Industrial standard size. Low power consumption. Categorized for luminous intensity. Pb free.
