IRM-2656-DIP-A

Infrared Remote-control Receiver

Everlight Electronics

IRM-2656-DIP-A Features

* : ‧High protection ability against EMI . ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧Side-Received DIP Type. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS co

IRM-2656-DIP-A General Description

The IRM-26xx-DIP-A SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-26xx-DIP-A SERIES is the stand.

IRM-2656-DIP-A Datasheet (199.66 KB)

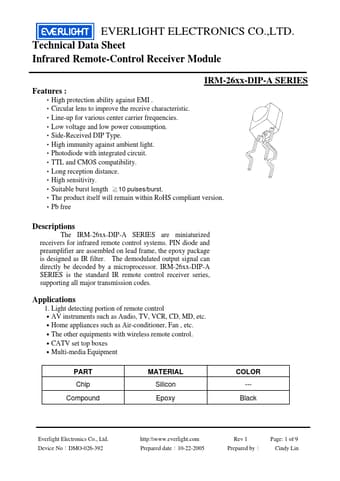

IRM-2656-DIP-A Datasheet Preview — Preview of IRM-2656-DIP-A PDF

Datasheet Details

Part number:

IRM-2656-DIP-A

Manufacturer:

Everlight Electronics

File Size:

199.66 KB

Description:

Infrared remote-control receiver.
