IRM-2656V Infrared Remote-control Receiver

‧The IRM-26XXV SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-26XXV SERIES is the standard IR re.

IRM-2656V Features

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Improved shielding against electrical field disturbance

* TTL and CMOS compatibility

* Output active low

* Low power consumption

* Improved immunity against

IRM-2633V-EverlightElectronics.pdf

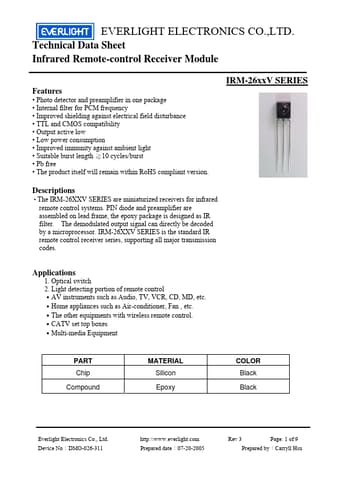

IRM-2656V Datasheet Preview — This datasheet PDF includes multiple part numbers: IRM-2656V, IRM-2633V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRM-2656V, IRM-2633V

Manufacturer:

Everlight Electronics

File Size:

287.55 KB

Description:

Infrared remote-control receiver.

Note:

This datasheet PDF includes multiple part numbers: IRM-2656V, IRM-2633V.
Please refer to the document for exact specifications by model.
