IRM-8602S-1 Datasheet - Everlight Electronics

Infrared Remote-control Receiver

IRM-8602S-1 Features

* ‧High protection ability against EMI . ‧Oval lens to improve the receive angles. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧Long reception distance.

IRM-8602S-1 General Description

The device is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can dire.

IRM-8602S-1 Datasheet (250.66 KB)

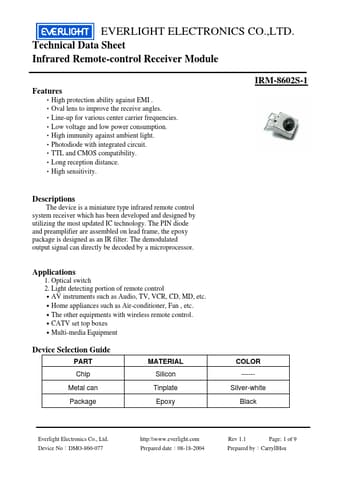

Preview of IRM-8602S-1 PDF

Datasheet Details

Part number:

IRM-8602S-1

Manufacturer:

Everlight Electronics

File Size:

250.66 KB

Description:

Infrared remote-control receiver.
