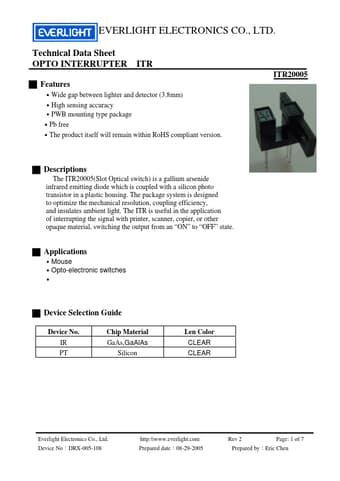

ITR20005 Datasheet, Switch, Everlight Electronics

ITR20005 Features

• Switch ․Wide gap between lighter and detector (3.8mm) ․High sensing accuracy ․PWB mounting type package ․Pb free ․The product itself will remain within RoHS compliant version. ITR ITR20005 █

PDF File Details

Part number:

ITR20005

Manufacturer:

Everlight Electronics

File Size:

235.54kb

Download:

📄 Datasheet

Description:

Opto interrupter itr slot optical switch. The ITR20005(Slot Optical switch) is a gallium arsenide infrared emitting diode which is coupled with a silicon photo transistor in

ITR20005 Application

• Applications ․Mouse ․Opto-electronic switches ․ █ Device Selection Guide Device No. IR PT Chip Material GaAs,GaAlAs Silicon Len Color CLEAR CLEAR
