ITR9606-F, Opto Interrupter

Technical Data Sheet Opto Interrupter * .
․The ITR9606-F consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black t.

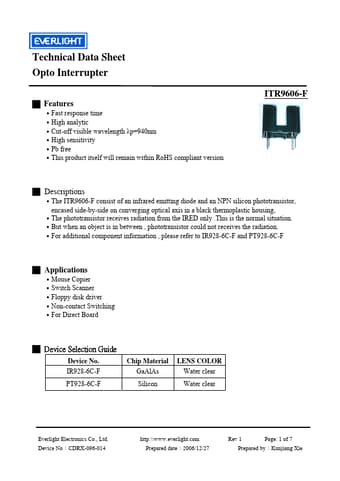

datasheet Preview Page 1 from Datasheet4u.com

ITR9606-F-EverlightElectronics.pdf

ITR9606-F Datasheet Preview — Preview of ITR9606-F PDF

Datasheet Details

Part number:

ITR9606-F

Manufacturer:

Everlight Electronics

File Size:

337.32 KB

Description:

Opto Interrupter

Features

* ․Fast response time ․High analytic ․Cut-off visible wavelength λp=940nm ․High sensitivity ․Pb free ․This product itself will remain within RoHS compliant version ITR9606-F

Applications

* ․Mouse Copier ․Switch Scanner ․Floppy disk driver ․Non-contact Switching ․For Direct Board
* Device Selection Guide Device No. IR928-6C-F PT928-6C-F Chip Material GaAlAs Silicon LENS COLOR Water clear Water clear Everlight Electronics Co. , Ltd. Device No：CDRX-096-014 http:\www. everlight. com
