ITR9702 Datasheet - Everlight Electronics

ITR9702 - Opto Interrupter

: The ITR9702/F23(Slot Optical Switch) is a gallium arsenide infrared emitting diode which is coupled with a silicon photo transistor in a plastic housing.

The packaging system is designed to optimizes the mechanical resolution, coupling efficiency, and insulates ambient light.

The slot in the housi

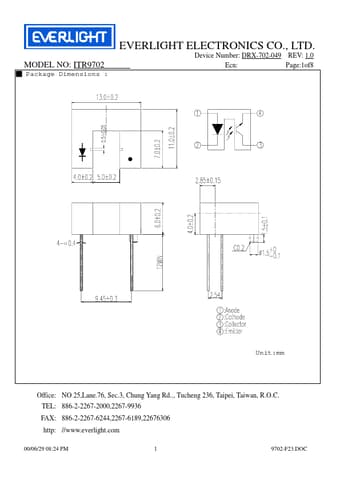

MODEL NO: ITR9702 Package Dimensions : EVERLIGHT ELECTRONICS CO., LTD.

Device Number: DRX-702-049 REV: 1.0 Ecn: Page:1of8 Unit:mm Office: NO 25,Lane.76, Sec.3, Chung Yang Rd.., Tucheng 236, Taipei, Taiwan, R.O.C.

TEL: 886-2-2267-2000,2267-9936 FAX: 886-2-2267-6244,2267-6189,22676306 http: //www.everlight.com 00/06/29 08:24 PM 1 9702-F23.DOC EVERLIGHT ELECTRONICS CO., LTD.

Device Number: DRX-702-049 REV: 1.0 MODEL NO: ITR9702 Ecn: Page:2of8 ◎Notes: 1.All dimensions are in millim

ITR9702 Features

* .Wide gap between light emitter and detector(5.0mm) .High sensing accuracy .PWB mounting type package

* Applications: .Copier .Printer .Facsimile .Ticket vending machine .Opto-electronic switch 00/06/29 08:24 PM 2 9702-F23.DOC MODEL NO: ITR9702 EVERLIGHT ELECTRONICS CO., LTD. Device Numbe

ITR9702-EverlightElectronics.pdf

Preview of ITR9702 PDF
ITR9702 Datasheet Preview Page 2 ITR9702 Datasheet Preview Page 3

Datasheet Details

Part number:

ITR9702

Manufacturer:

Everlight Electronics

File Size:

230.74 KB

Description:

Opto interrupter.
