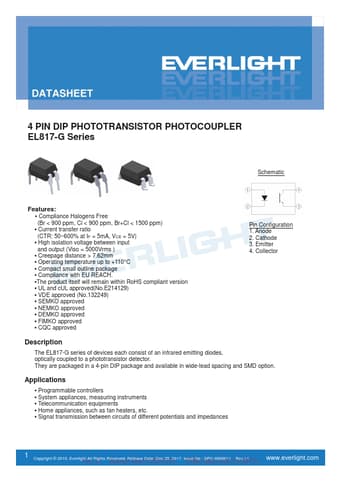

EL817-G, EL817-FVG 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

EL817-G Description

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817-G Series Schematic .
The EL817-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector.

EL817-G Features

* .
* Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
* Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V)
* High isolation voltage between input and output (Viso = 5000Vrms )
* Creepage distance > 7.62mm
* Operating temperature

EL817-G Applications

* Programmable controllers
* System appliances, measuring instruments
* Telecommunication equipments
* Home appliances, such as fan heaters, etc.
* Signal transmission between circuits of different potentials and impedances 1 Copyright © 2010, EverligVhteArll

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL817-G, EL817-FVG. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL817-G, EL817-FVG
Manufacturer
Everlight
File Size
938.75 KB
Datasheet
EL817-FVG-Everlight.pdf
Description
4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
Note
This datasheet PDF includes multiple part numbers: EL817-G, EL817-FVG.
Please refer to the document for exact specifications by model.
