EL817 - 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

General Description

The EL817 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector.

They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Programmable controllers System appliances, measurin

Key Features

  • Compliance Halogens Free (Only copper leadframe) (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm).
  • Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V).
  • High isolation voltage between input and output (Viso = 5000Vrms).
  • Creepage distance > 7.62mm.
  • Operating temperature up to +110°C.
  • Compact small outline package.
  • The product itself will remain within RoHS compliant version.
  • Compliance with EU REACH.
  • UL and cUL.

📥 Download Datasheet

Datasheet Details

Part number EL817
Manufacturer Everlight
File Size 940.44 KB
Description 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet download datasheet EL817 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EL817 Photocoupler ARTS CHIP
EL817-G 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Everlight
EL8170 Rail-to-Rail Input-Output Instrumentation Amplifier Renesas
EL8171 Rail-to-Rail Input-Output Instrumentation Amplifier Renesas
EL8172 Rail-to-Rail Input-Output Instrumentation Amplifier Renesas

Other Datasheets by Everlight

Part Number Description
EL817L Technical Data Sheet Photocoupler
EL814 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL816 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL816A 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL816B 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

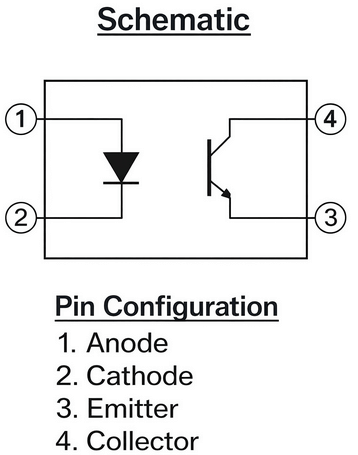

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817 Series Schematic Features: • Compliance Halogens Free (Only copper leadframe) (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm) • Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) • High isolation voltage between input and output (Viso = 5000Vrms) • Creepage distance > 7.62mm • Operating temperature up to +110°C • Compact small outline package •The product itself will remain within RoHS compliant version • Compliance with EU REACH • UL and cUL approved(No.E214129) • VDE approved (No. 132249) • SEMKO approved • NEMKO approved • DEMKO approved • FIMKO approved • CQC approved Pin Configuration 1. Anode 2. Cathode 3. Emitter 4.
