EL817A-FV Datasheet, Photocoupler, Everlight

EL817A-FV Features

• Photocoupler
• Compliance Halogens Free (Only copper leadframe) (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
• Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V)

PDF File Details

Part number:

EL817A-FV

Manufacturer:

Everlight

File Size:

940.44kb

Download:

📄 Datasheet

Description:

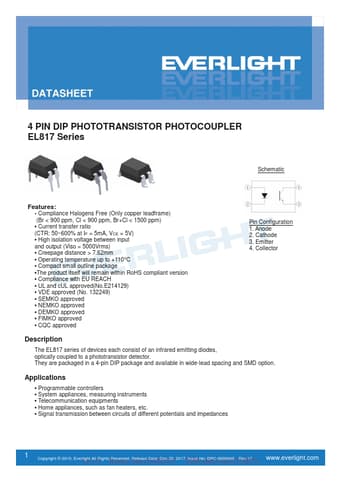

4 pin dip phototransistor photocoupler. The EL817 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector. They are pa

EL817A-FV Application

• Applications
• Programmable controllers
• System appliances, measuring instruments
• Telecommunication equipments
