IRM-3640AF4 Infrared Remote-control Receiver

‧The IRM-36xxAF4 SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-36xxAF4 SERIES is the standard I.

IRM-3640AF4 Features

* :

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Improved shielding against electrical field disturbance

* TTL and CMOS compatibility

* Output active low

* Low power consumption

* Improved immunity agains

IRM-3638AF4_Everlight.pdf

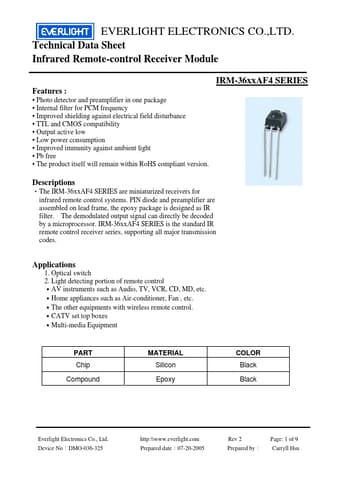

IRM-3640AF4 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRM-3640AF4, IRM-3638AF4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRM-3640AF4, IRM-3638AF4

Manufacturer:

Everlight

File Size:

298.76 KB

Description:

Infrared remote-control receiver.

Note:

This datasheet PDF includes multiple part numbers: IRM-3640AF4, IRM-3638AF4.
Please refer to the document for exact specifications by model.
